AAA10F功率監視儀

應用：

AAA10F是一個兼?zhèn)潆娫春蜏y(cè)量電流功能的設備。它的目的是作為一個電池或電源更換為您的設備，讓它記錄設備運行期間所有的功率消耗

保修：非人為原因，所有產品保修一年。

技術支持：我們對儀器提供終身免費技術支持，您遇到任何問題，我們都會在當天反饋的美國 原廠，當天即可得到技術支持。我們一定給您最準確最權威的答復。

應用范圍：購買此儀器的客戶80%是測手機的電流，功耗及其穩定性。此儀器還可以測電子元器 件上的功耗，電流電壓測試范圍是可以調節的，此儀器精度很高，測試精度可以達到微安級別，可以滿足絕大部分的電流功耗測試。

關于客戶范圍：我們的客戶主要覆蓋各大手機公司，包括聯想手機，TCL手機，華為手機，中興手機，360手機等。 還覆蓋各個大學，研究所，包括清華大學，鄭州大學等。還覆蓋各大手機方案公司等。

特點：

詳細產品參數：

Introduction

The PowerTool software and the Power Monitor hardware provide a robust power measurement solution for mobile devices. The PowerTool so ftware and the Power Monitor Hardware can analyze the power On any device that uses up to a 3-cell Lithium-Ion Battery, supplying up to 13.5V and 6 Amps. Electrical engineers and software developers can utilize the PowerTool software and the Power Monitor hardware to optimize the design and analyze the performance of their mobile devices.

Figure 1 Graphical user interface (GUI) for the PowerTool
software

The Power Monitor can measure data on three channels: Main, USB, and Auxiliary. The Main channel is what most users will use for their measurements. A USB channel is provided as is an AUX channel . The GUI details are described below for the Main channel, but largely apply to all sampling sources. Cases where they differ are called out in the appropriate sections on USB or AUX measurements.

Figure 2 Mobile Device Power Monitor

Hardware and Software Requirements for the Development Workstation

A dedicated Windows plat Form workstation is required to be used with the Power Monitor to achieve the optimal performance and results. Slower/older computers may not be able to process samples efficiently enough and users may see a significant number of dropped samples.

ξ Windows Vista, Windows 7, Windows 8, or Windows 10 [XP support discontinued after 4.0.4.11]

ξ 1024x768 or greater screen resolution

ξ 3.2 GHz 32-bit (x86) processor.

ξ 4 GB of system memory

ξ 40 GB hard drive with at least 15 GB of available space

ξ Version 4.0.4.12 and 5.0.0.0 require .Net 4.5. Version 4.0.4.11 requires .Net 4.0. Versions 4.0.4.0-4.0.4.10 require .Net 3.5.

ξ Full Speed USB 2.0 ?integrated chipset or PCI/PCI Express add in card.

ξ USB 3.0 or Downstream Charging ports are recommended for Front-panel connections.

USB Hubs, including monitor hubs, should not be used with the Power Monitor for optimal performance.

Installing the PowerTool Software, Drivers and Connecting to the Power Monitor Hardware

Prior to installing the latest version, uninstall any previous version of the Power Monitor Software from the Control Panel.

Create a new temporary folder on the development workstation under the root directory

(C:).

Copy PowerTool.zip to the Development workstation.

Extract the contents of PowerTool 5.X.X.X.zip to the temporary folder.

Run PowerTool Install.exe

Follow the on screen prompts to install the PowerTool Software.

Power Monitor Driver Installation

After the PowerTool application has been installed and this is the first time the workstation

will be running the PowerTool application you will need to install two drivers, the Power

Monitor driver and the Firmware driver. Instructions are as follows:

1.Power on Power Monitor in normal mode ?Green led should be on.

2.Under Device Manager, find Mobile Device Power Monitor ?will have a yellow exclamation mark.

3.Right click and select Update Driver Software?

4.Select Browse my computer for driver software

5.Browse to C:Program Files (x86)Monsoon Solutions IncPowerMonitorDriversPC and click on Next.

6.Click on Close once the driver has finished installing.

7.Under Device Manager ?Universal Serial Bus devices, ensure that the Mobile Device Power Monitor has enumerated properly.

Firmware Driver Installation Instructions

1. Power on the Power Monitor in Output Enable mode by depressing the Output Enable button and the Power button simultaneously ?Amber led should be on.

2.Under Device Manager find the Unknown device and right click, select Update Driver Software?

3. Select Browse my computer for driver software

4. Browse to C:Program Files (x86)Monsoon Solutions IncPowerMonitorDriversFirmware and click on Next

5. Click on Close once the drive has finished installing.

6. Under Device Manager ?Custom USB Devices verify that the Microchip Custom USB Device has enumerated properly.

Updating the Firmware

The Power Monitor is shipped with the latest firmware and in most cases will not be required to be updated. If for any reason the firmware does need to be updated use the following instructions.

Power on the Power Monitor in Output/Enable mode by pressing on the Output Enable button and Power button simultaneously. The amber light should be on.

Figure 3 Output Enable button

Start the PowerTool application, and select the Reflash option, which is enabled whenever a Power Monitor device in boot mode is detected.

Figure 4 PM Flash Select Option

Click on the Load button and browse to the PMFlash folder where the PowerTool application

was installed and select the PM_RevX_ProtXXVerXX_Boot.fwm file. (Note, X is a placeholder for the proper version information for a given fwm file, for example,PM_RevD_Prot18_Ver21.fwm). The Reflash utility is also compatible with the deprecated .hex file format used in previous firmware releases.

Click on the Write button

Wait until the Status shows ?Write complete?.

Click on the X in the upper right of the window to exit when you are done.

Power off and then power back on the Power Monitor so you now have a green light.

Figure 5 PM Flash Window

Connecting to the Power Monitor Hardware

1.Ensure to read all instructions carefully before operation. Using the Power Monitor in A manner not specified by this manual may damage the equipment and impair protections designed for user safety.

2.Be sure that the power switch on the front of the Power Monitor hardware is not engaged. The hardware should not be powered-up.

3.The power switch should be in the outward position, not the inward position.

4.Connect the supplied 16 VDC / 7.5 Amp, power supply to the back of the Power Monitor and a wall power supply matching the unit抯 input requirements (100-240V, 47-63 Hz, 1.6A Maximum)

5.The power supply should be positioned so that it is within easy reach in the event that it needs to be disconnected for safety. Ensure this by placing the power brick on the same work surface as the Power Monitor with the AC input side facing the user. Ensure there are no obstructions in the work area that may impede you in the event of an emergency.

6.On a development workstation that is compliant with Full-Speed USB 2.0, connect a USB cable to the USB connector on the back of the Power Monitor hardware, and connect the other end of the USB cable to the development workstation. Do not connect to an external USB hub device.

************************************************************

Do not connect a third party power supply to the Power Monitor. The connector used does not have a standard pinout, and an improperly selected Power Supply may damage the device. If a replacement power supply is Required, contact Monsoon Solutions.

************************************************************

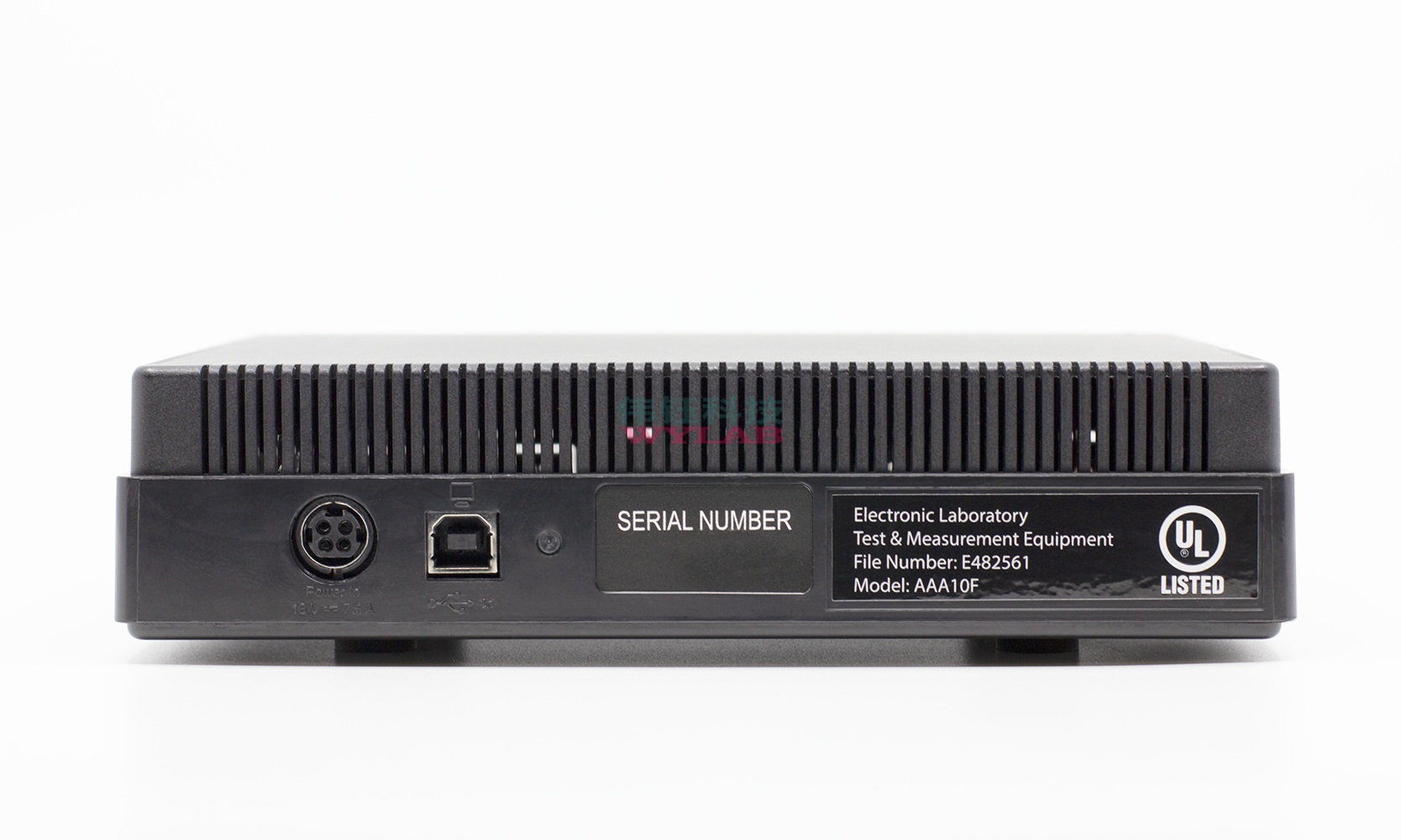

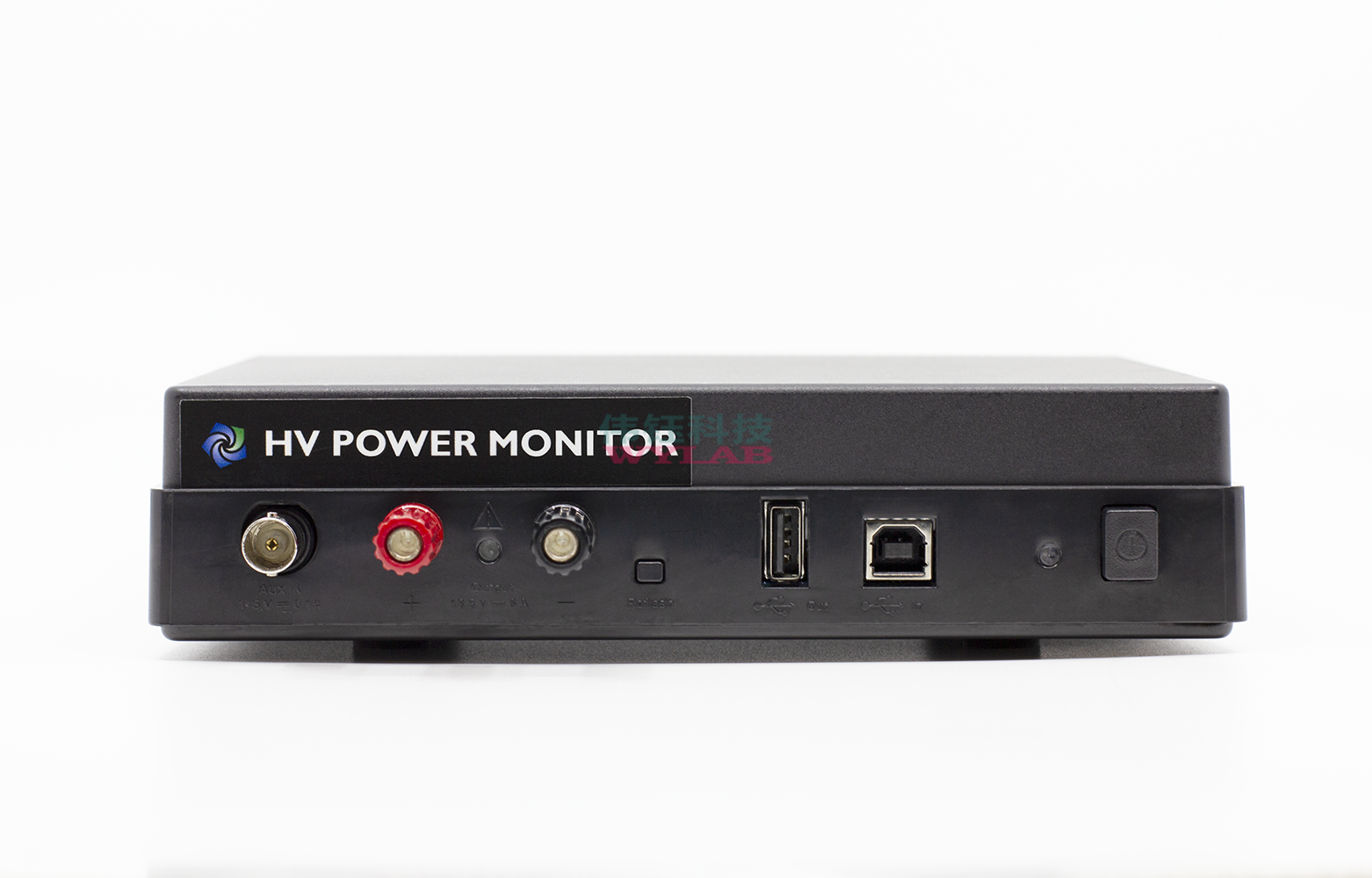

Figure 6 Back view: Power connector and USB connector

7.Turn on the Power Monitor hardware by engaging the power button on the front. The internal fan will briefly power-up and then power-down.

8.Initially, the power light-emitting diode (LED) is amber, and then it turns green. The green LED is connected directly to the internal power of the Power Monitor.

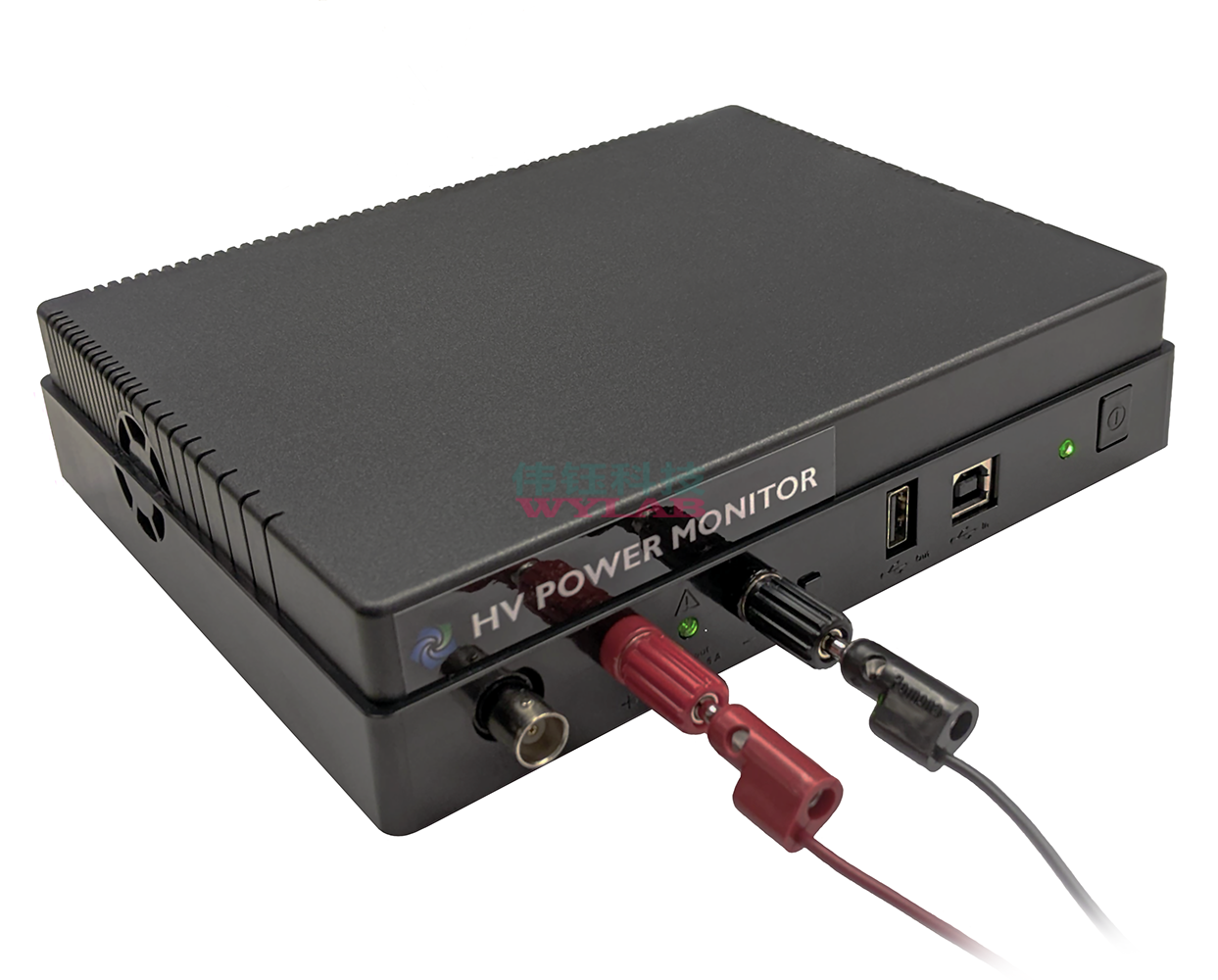

Figure 7 Front view: Engaged power button and powered-up green LED

Connecting the Power Monitor to a Device

Refer to the Appendix on how to properly configure a device battery to connect to the Power Monitor.

Note Wear ANSI Z87.1 compliant safety goggles at all times while working with exposed battery terminals and wiring.

**************************************************************

Connecting the Power Monitor to a device to collect current measurements can be complicated and dangerous. Be sure that the area where power measurements are being conducted is protected from fire danger, do not have flammable items

nearby. These measurements are at your own risk, and these procedures are not guaranteed to prevent damage or injury.

**************************************************************

Note When attaching the power measuremenT hardware to a device with a lithium battery, there is always a risk of damaging the device, or causing the device to heat-up, Generate smoke, or catch fire. While this is unlikely, be extremely careful. It is recommended to work on a flame-resistant surface and have fire control equipment at the ready when performing the battery bypass and connecting the Power Monitor to the device under test. Immediately disconnect equipment that begins to exceed safe temperatures.

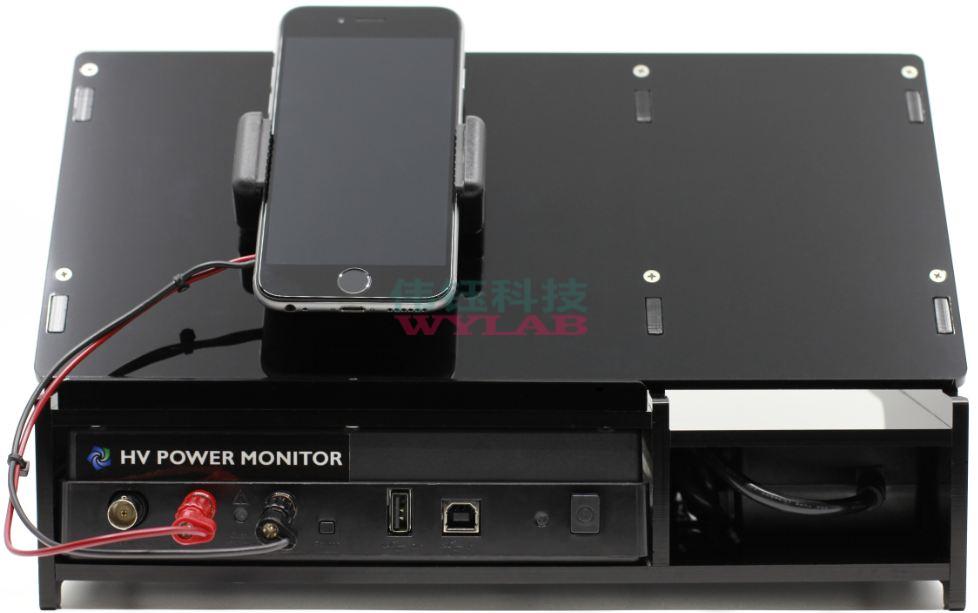

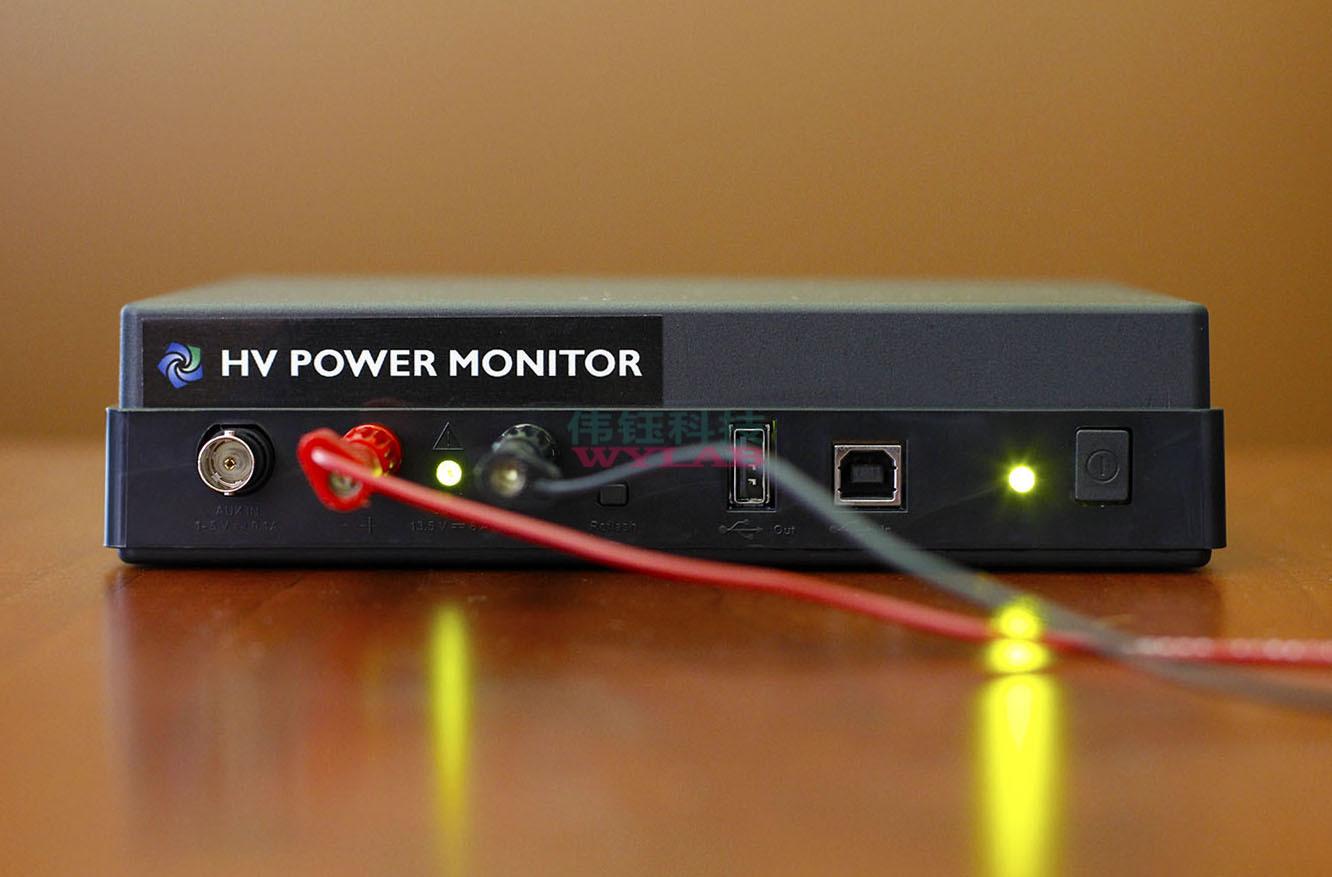

Figure 8 A mobile device connected to the main channel

Using the PowerTool Software

After connecting the device, power up the Power Monitor and run the PowerTool software (PowerTool.exe). The software should connect to the Power Monitor, and display the user interface (UI).

Figure 9 PowerTool software UI afTer connecting to a device

Checking the Software Revision of the Power Monitor

The revisions of the hardware (HW ver), firmware (FW ver), and software (SW ver) should be compatible for consistent and repeatable results and performance.

If the Power Monitor software Is updated, the firmware will need to be confirmed for compatibility. The Power Monitor will prompt the user to indicate that a new firmware is required to run this revision of software. If this occurs, then the firmware (FW ver) will need to be updated on the Power Monitor. Please follow the instructions on updating the Power Monitor firmware.

The following table describes The various revision numbers that are displayed in the UI.

AAA10F  Specification Parameter

To make sure the correct software is installed,check the revision fields in the UI. Figure 10 below shows the area of the UI that displays the software revision.

Figure 10 Revision fields shown in the PowerTool UI

最大輸出電壓： 13.5V

最大持續電流： 6A

最大輔助輸入電壓： 5.5V

高壓電源監視器是完全UL，F(xiàn)CC和CE認證。它適用于需要一到三個鋰離子電池供電的設備。

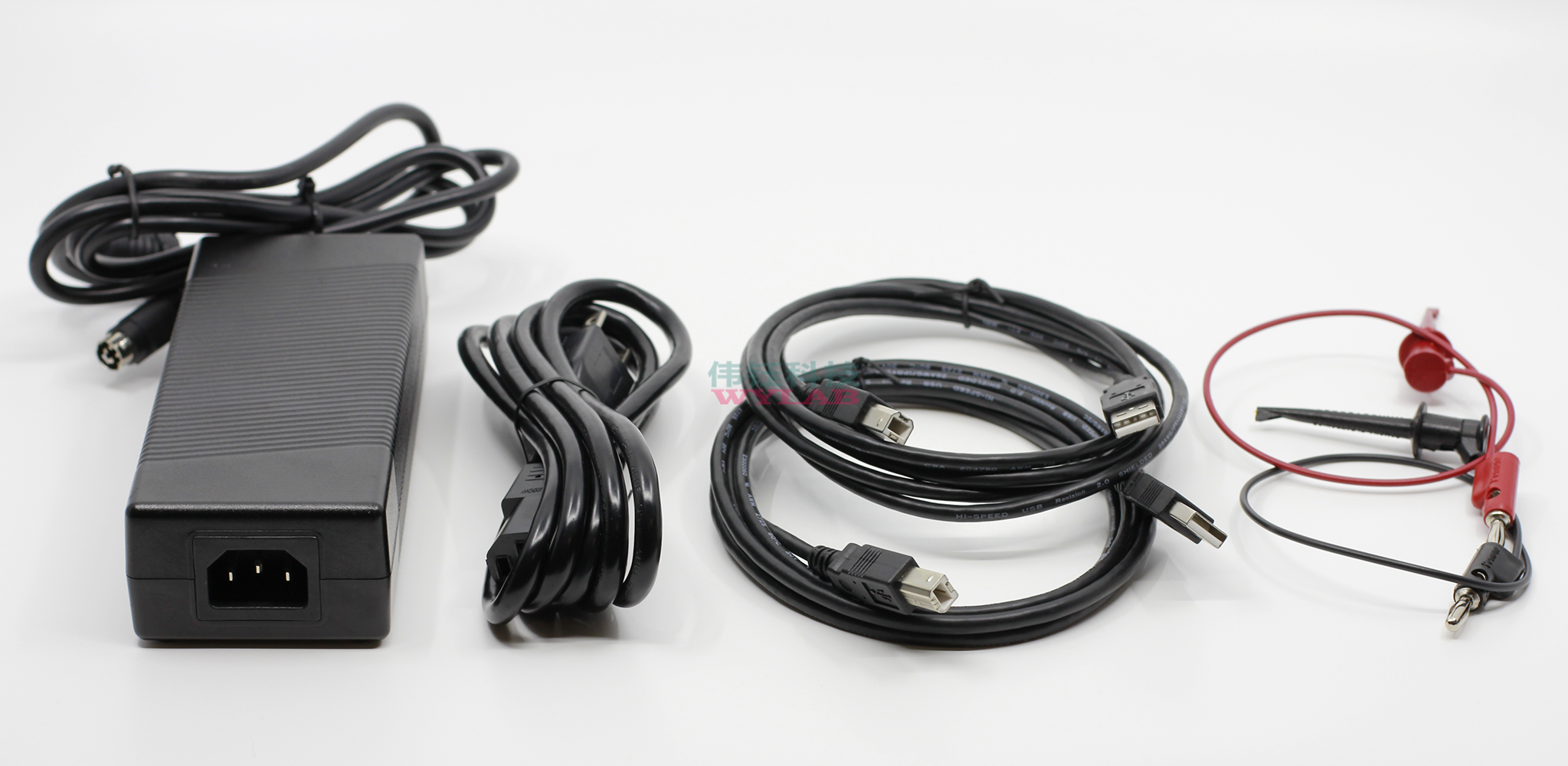

每個單元都配有一個定制設計的電源、2個鱷魚夾、2條USB電纜和一個帶有軟件下載和支持文檔鏈接的信息卡。

型號：AAA10F
